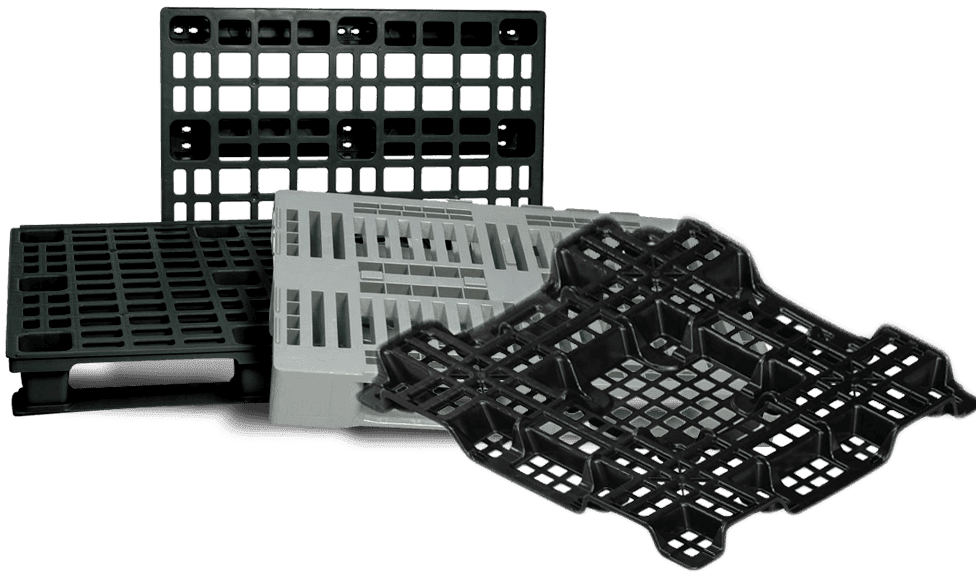

Bulk Handling Australia is pleased to announce the introduction of Plastic Pallets as part of our product range. Fully injection molded from HDPE, these pallets offer a range of options for either single or multi trip purposes.

The range includes BHA’s patented Bulk Bag plastic pallet the Bag Pallet

Catering for Safe Working Loads of up to 3,000 Kgs.

PRODUCT BENEFITS:

Injection Molded
4 Way Entry
Light weight and durable
UV Protected
Outer Dimensions:
1100 x 1100, 1200 x 1000 x 140, 1200 x 1000 x 150
Safe Working Load:
400 Kgs, 800 Kgs, 1,000 Kgs, 2,000, 3000 Kgs

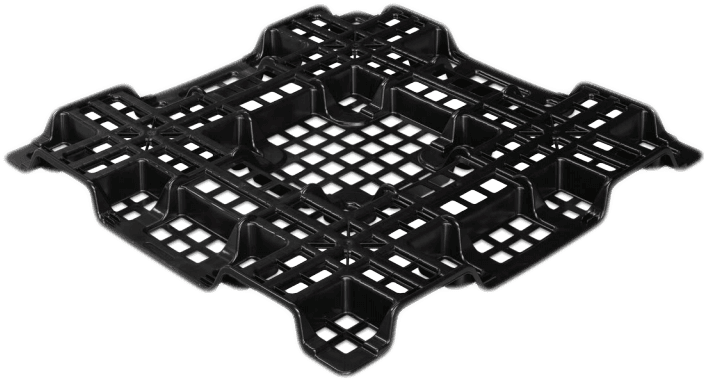

BHA Bag Pallet

The BHA Bag Pallet™ is a revolutionary new design in export pallets – a low cost,
lightweight, space efficient alternative to existing expensive wooden and plastic pallets
for exporting materials in Bulk Bags and other suitable packaging materials.
• Made of High Density Polyethylene (the same HDPE material as used for wheelie bins)
• UV treated (master batch 2%)
• Injection moulded
Space Saving and Stackable
Recyclable
Lightweight only 4.7kg
Lower Cost
Ease of Use – 4 way Entry

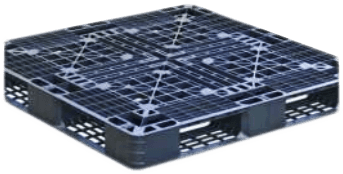

BHA 1100 R Plasti c Pallet

Not affected by Moisture
1100 x 1100 x 120mm size
1.2 tonne Load capacity (no racking)
An inexpensive option for one way use
4 way fork lift entry for easy handling
Passes all export regulations (pest free)
No fumigation or heat treatment required
SPECIFICATIONS
• Product Code: BHA 1100R Plastic Pallet
• Type: Reversible
• Size: 1100 x 1100 x 120mm (+/- 5mm)
• Weight: 10.5 Kg
• Raw Material: High Density Polyethylene
• Manufacture: Injection Moulded/ Heat compressed welded
• Colour: Black
• SWL: Sta c 4000 Kg—Dynamic 1200 Kg
• Recyclable: 100% recyclable
• Design: Injection moulded cellular design for maximum strength and rigidity
• Cleaning: Can be Hot washed, steam cleaned or chemically sterilized
• Application : General , Food processing, Pharmaceutical etc.
• Entry Points : 4 way forklift
• Chemical resistance: Very high chemical resistance particularly acids and alkalis
SPECIFICATIONS
• Product Code: BHA 1100 Plastic Pallet
• Type: Grill Top Deck— Grill Base
• Size: 1100 x 1100 x 120mm (+/- 5mm)
• Weight: 7.5 Kg
• Raw Material: High Density Polyethylene
• Manufacture: Injection Moulded/ Heat compressed welded
• Colour: Black
• SWL: Static 4000 Kg—Dynamic 1000 Kg
• Recyclable: 100% recyclable
• Design: Injection moulded cellular design for maximum strength and rigidity
• Cleaning: Can be Hot washed, steam cleaned or chemically sterilized
• Application : General , Food processing, Pharmaceutical etc.
• Entry Points : 4 way forklift—4 way Pallet Jack
• Chemical resistance: Very high chemical resistance particularly acids and alkalis

BHA 1100 Plasti c Pallet

Not affected by Moisture
1100 x 1100 x 120mm size
1.0 tonne Load capacity (no racking)
An inexpensive option for one way use
4 way fork lift entry for easy handling
Passes all export regulation (pest free)
No fumigation or heat treatment required

Testing

• The product has been extensively tested at the NATA approved
lab Falcon Engineering
• Testing has included dynamic load tests and heat testing
• Potential cost advantage vs export wooden pallets or standard
plastic pallets
• Light weight at 4.7kg reducing potential OH&S issues in handling
heavy export wooden pallets
Stack-ability offers enormous space savings vs traditional pallets – 11 BHA Bag pallets in 280mm
• Recyclable
• No AQIS issues as made from HDPE
• Removes wood from site and for food manufacturers reduces the
issue of foreign objects
• Potential to increase payload: As each pallet weighs approximately
10-15 kg less than an export wooden pallet a 40 ft container
payload can be increased by 300kg and a lower profile height may
allow greater efficiencies in the Bulk bag design re payload
• SWL 3 tonne Dynamic load

Key Dimensions

Length & width: 1100mm x 1100mm
Height: 58.5mm
Stack-ability: 11 units high in 280mm
Tine Chutes: 55mm high x 184mm width
